How to create custom recording types and device profiles for Nox A1

In Noxturnal 5 there was a new concept introduced of Recording Types and Device Profiles that replaced the previously used Recording Templates and the Automation Settings in Noxturnal 4 and below.

Device Profiles define:

  • What channels are configured on the Nox A1 recorder
  • What type of battery is used during the recording

Recording types define:

  • What device profile is used for the Nox A1 recorder
  • What auxiliary devices are used in the recording
  • What analysis is performed when recording is downloaded
  • What report is opened after the analysis has been performed
  • What workspace layout is present to the user after downloading and analyzing

Noxturnal has default recording types and device profiles and below it will be demonstrated how to create a custom device profile and a custom recording type.

Step 1 - Device Profiles

The most efficient way is to start doing the device profile that can then be implemented when the custom recording type is created.

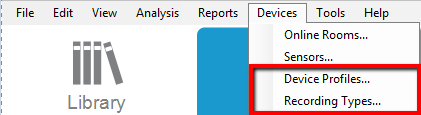

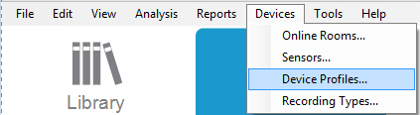

Navigate to Devices > Device Profiles on the menu bar

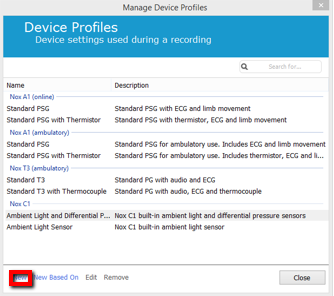

The Manage Device Profiles dialog is opened with the default device profiles

Click New

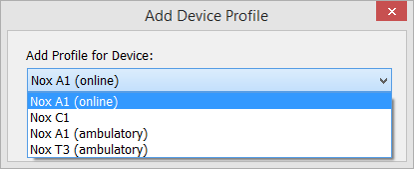

Select Nox A1 (online) or Nox A1 (ambulatory) from the drop down list, depending on the type of recording being performed, and click OK

1. Profile

Name the Device Profile and give it a description.

Click Next

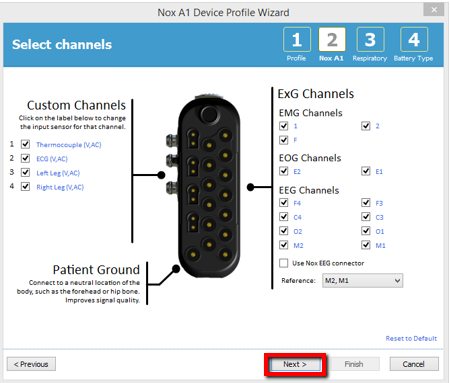

2. Select Channels

In this page the user can customize the device custom channels settings by selecting the configuration to be used for the Nox A1 recorder.

Click Next

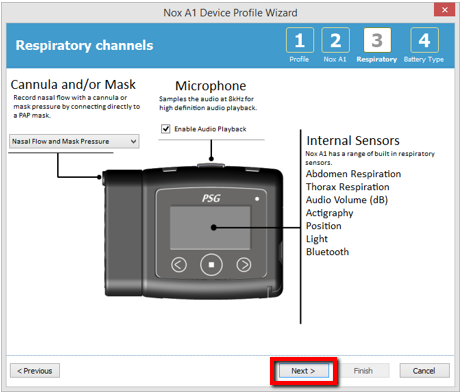

3. Respiration channel configuration

The user can change settings for:

a) Pressure Sensor

  • Diagnostic Study: "Nasal Flow"
  • nPAP Study: "Mask Pressure"
  • Mixed: "Nasal Flow and Mask Pressure"
  • MSLT or MWT or similar: "None"

b) Recording the full audio (playback and frequency content information) or just the minimum derived audio information (sufficient for snoring analysis based on audio)

This site also displays the internal sensors that are recording regardless of configuration. Click Next >

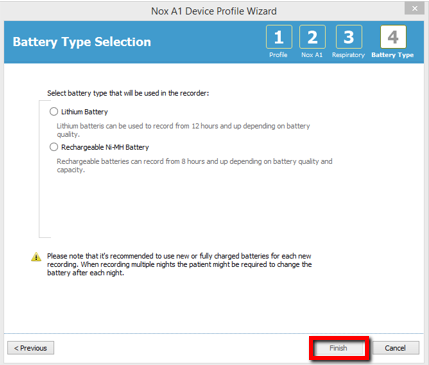

4. Battery Type

Select the type of battery that will be used in the recorder.

Click Finish

The new Device Profile has been added to the list of of available Device Profiles for Nox A1

Step 2 - Create a Recording Type

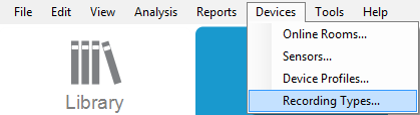

Navigate to Devices > Recording Types on the menu bar

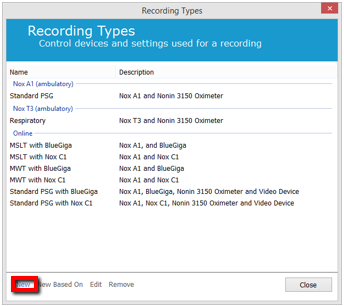

The Recording Types dialog is opened with the default Recording Types

Click New

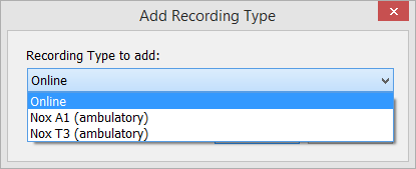

Select Online or Nox A1 (ambulatory) from the drop down list and click OK

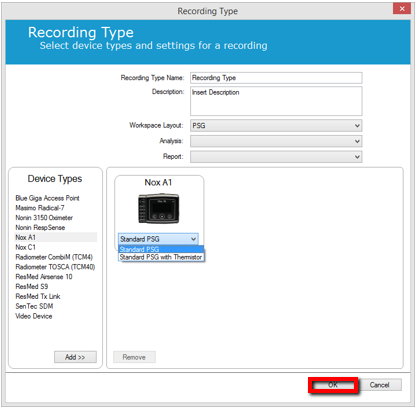

In this page the user can:

  • Give the Recording Type a name
  • Add description (the description can be visible when hovering over the information button when configuring a Nox A1 recording)
  • Choose a workspace layout
  • Select analysis to be performed (for online studies after the first closing and reopening of the study, in ambulatory after downloading) and report to be opened (chosen as standard on the Recording Results page)
  • Add Auxiliary devices to be used in the recording (types of auxiliary devices is different for Online and Ambulatory)
  • Select the required device profiles on the devices which have such options (e.g for Nox A1 the user should be able to add the custom one from step 1)

Make the arrangement you want and click OK

The new Recording Type has been added to the list of available Recording Types for Nox A1

The new recording type should be available when configuring a Nox A1 recording.

For further information please contact



*Please note that not all features or all products are available in all markets. Our products are medical devices and subject to registration/approval in each market area. For more information on product availability please contact
