Overview
The attached report parts (see below the article) are intended for users who are using TCO2 monitors (Sentec and Radiometer, e.g.) during a Nox recording and want to extract summary information from the signals that have been recorded with Noxturnal.

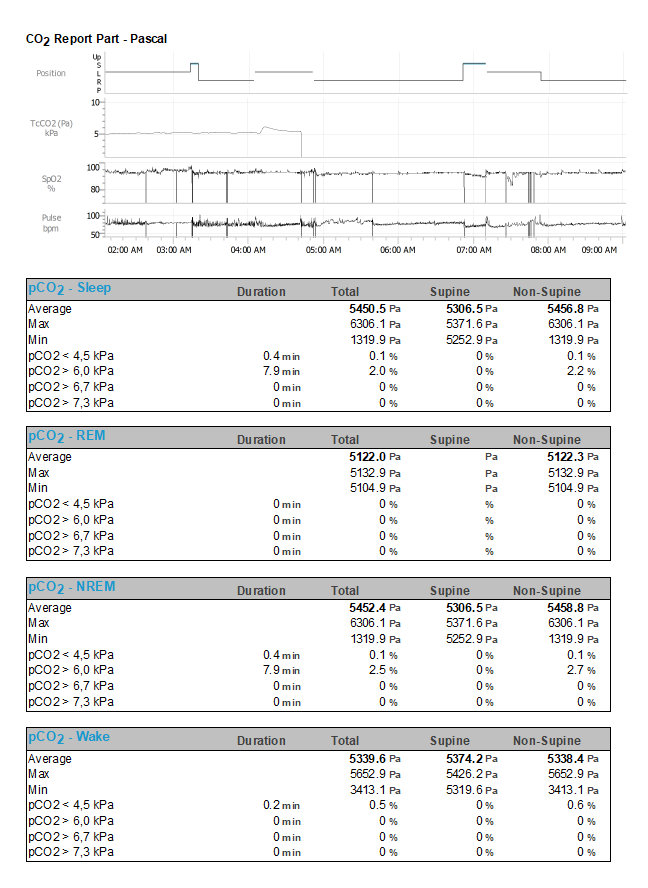

The report contains an overview of the CO2 signal, position, pulse, and SpO2. Below, the user will find summary tables based on different sleep stages and positions. The report parts can be easily modified or added to an existing report.
Select the report part based on what unit you would like to work with (mmHg or kPa*) and follow the instructions below to have them available for your customized reports.
This report will work for Noxturnal 6 and up.
Instructions
mmHg
- Download the CO2 Report Part - mmHg word file and import into Noxturnal using the instructions below to have access to the report part.
kPa
- Download the CO2 Report Part - kPa word file and import into Noxturnal using the instructions below to have access to the report part.
Adding Report Parts to Noxturnal 6.0

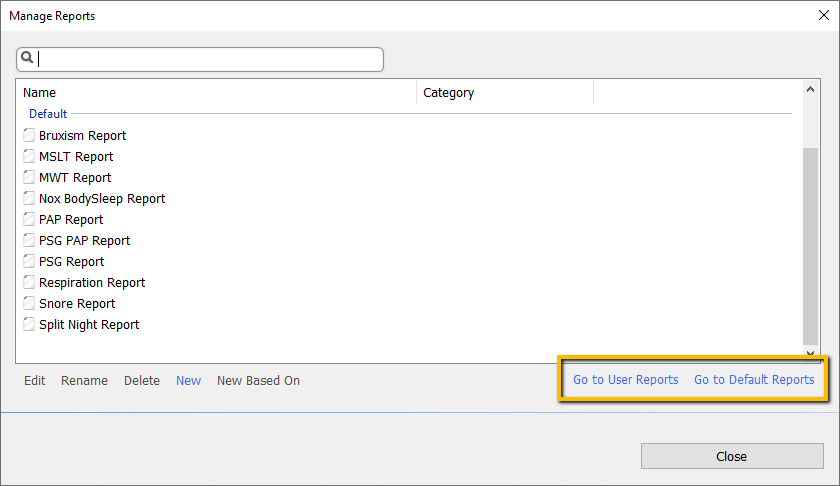

Open Noxturnal and Navigate to Reports -> Manage Reports
In the manage reports section Go to either User Reports or Default Reports depending on where the report is going to be added.

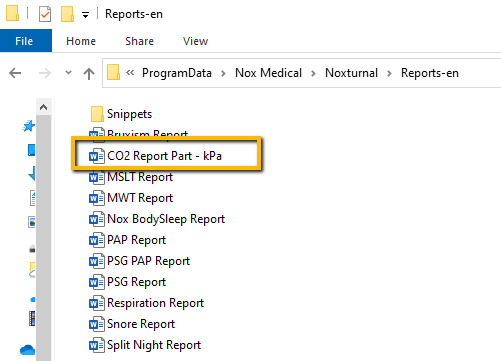

Add the downloaded report part from the word document either into an existing report by copy-paste the content in to an existing report of interest or add the word document as a standalone report into the report system.
When this report has been added or an existing report template updated it will be available when opening up the Noxturnal software.
Troubleshooting
What to do if there are no traces are appearing in the CO2 report part.
Step 1:
Verify that the recording you are viewing has some non-zero TCO2 signal parts.
Step 2:
Check if the Signal Groups contain the signal type of interest:
mmHg
- Navigate to Tools -> Settings... -> Signal Types & Groups -> Signal Groups

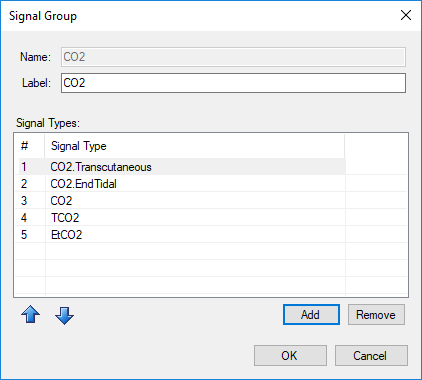

- Double click the CO2 Signal group
- Verify that the CO2.Transcutaneous signal group is listed number 1 and the report part will work properly
kPa

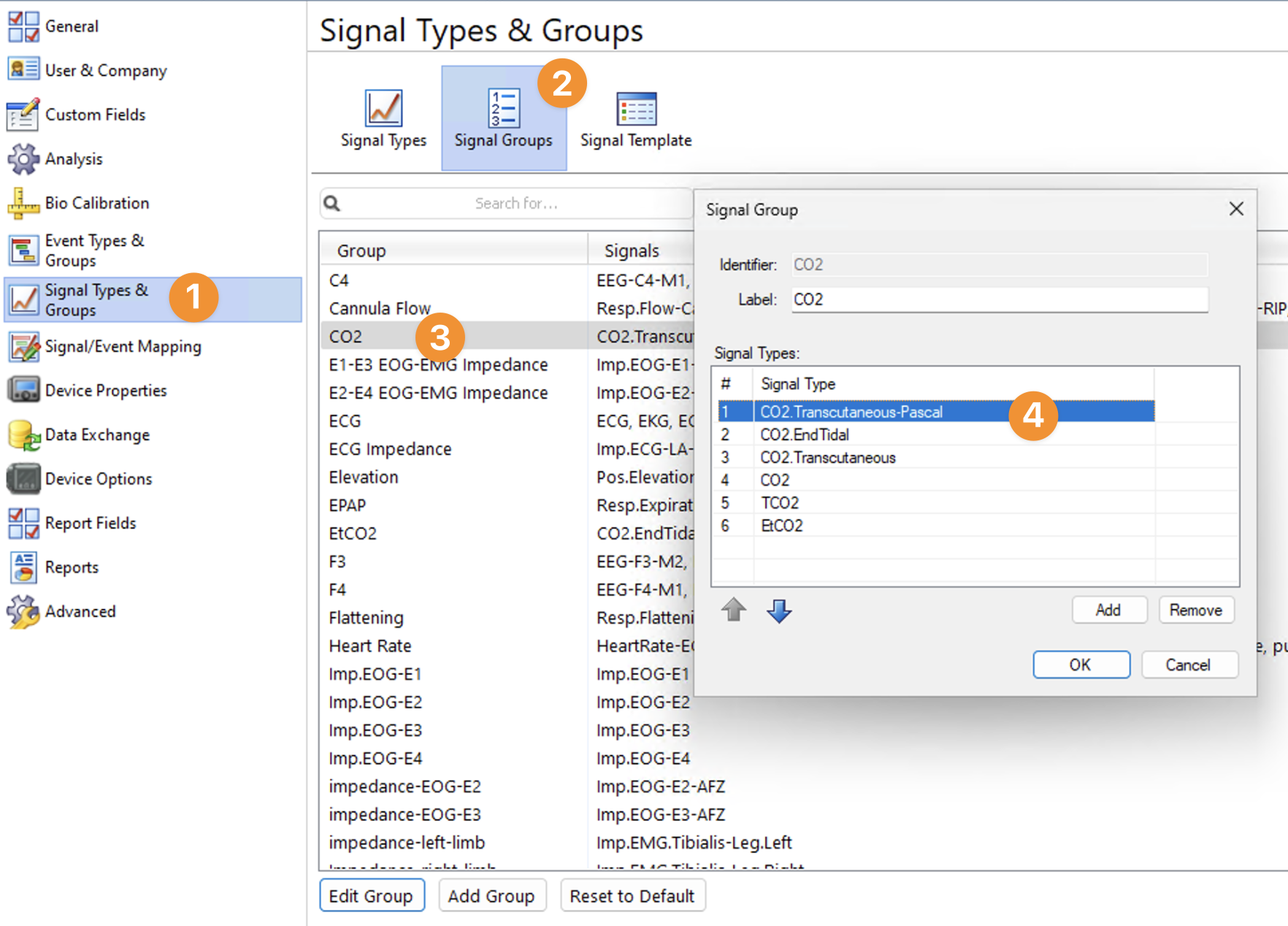

- Navigate to Tools -> Settings... -> Signal Types & Groups -> Signal Groups
- Verify that a CO2 Pascal Signal group is available
- Double click the CO2 Pascal Signal Group
- Make sure that the CO2.Transcutaneous-Pascal signal type to be number 1 and the report part will work properly
- Click OK
* Note that currently, the report system cannot scale the Pa value into kPa for the summary fields. Therefore they are listed in Pa
